Brookwood™ Piston Air Compressors for Aeration

Free Shipping in the USA

High output continuous-duty oil-free rocking piston air compressors by Aquatic Systems are an industry standard in clean air for pond and lake aeration. These compressors are replacements for the Vertex Aeration Systems or can be used as stand-alone air pumps if your application is appropriate. If you have questions please contact us prior to ordering. Of you are purchasing a Brookwood compressor to retrofit or repair your Vertex Aeration system then these are authentic and authroized pumps exclusive to the manufacturer.

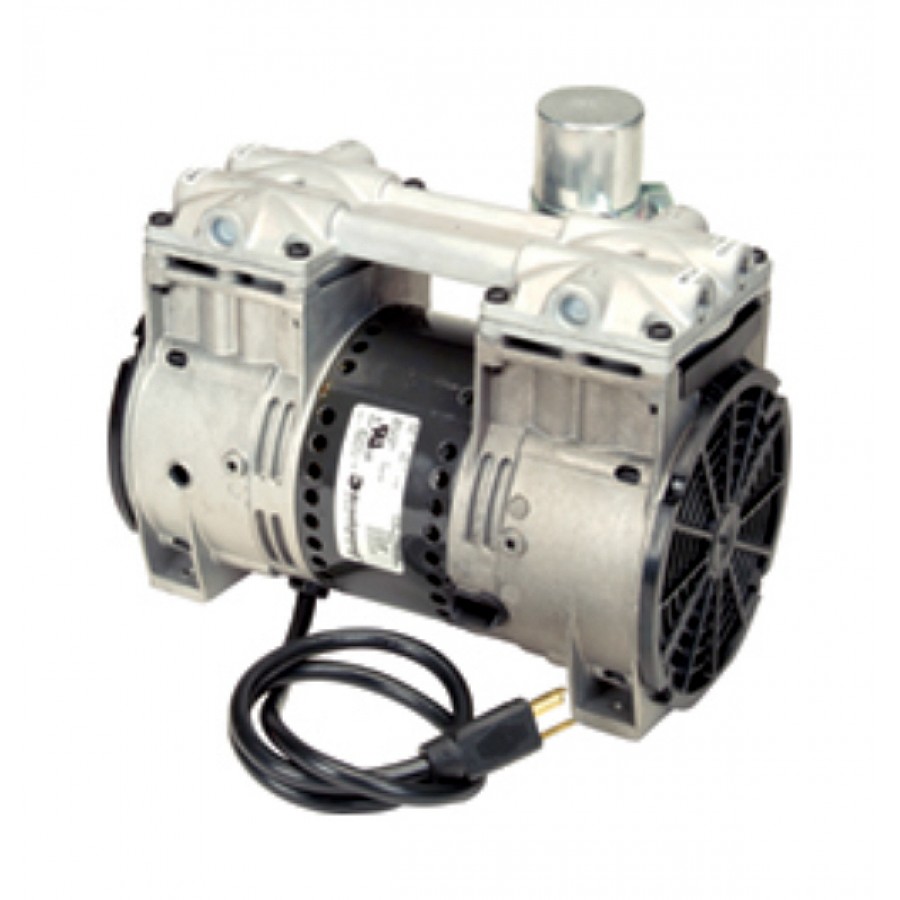

Brookwood™ Rocking Piston Compressors

• SafeStart™ technology for full pressure restarts
• Highest flow rate of any compressor in its class
• Available in 115V 60 Hz or 220V – 240V, 50/60 Hz
• Oil-free – requires no lubrication
• 2 – 4 times the duty cycle of other compressors
• Thermal overload protection
• Superior piston design provides higher pressure, quieter operation and longer life than vane compressors

*Note: Outlet hose is not included. Compressor outlet is 1/4" FPT.

Brookwood™ Models Available


1/3 HP - 2.5 CFM - MAX 35 PSI

COM404-CK
115v - 4.4 amps approx.
1/3 hp Dual Cylinder 115V Kit including compressor, vibration feet and filter/muffler

COM402-CK
230v - 2.2 amps approx
1/2 hp Dual Cylinder 230V Kit including compressor, vibration feet and filter/muffler





1/2 HP - 4.3 CFM - MAX 25 PSI
COM106-CK
115v - 7.8 amps approx.
1/2 hp Dual Cylinder 115V Kit including compressor, vibration feet and filter/muffler

COM405-CK
230v - 3.9 amps approx.
1/2 hp Dual Cylinder 230V Kit including compressor, vibration feet and filter/muffler




3/4 HP - 5.6 CFM - MAX 25 PSI
COM103-CK
115v - 8.8 amps approx.
3/4 hp Dual Cylinder 115V Kit including compressor, vibration feet and filter/muffler

COM403-CK
230v - 4.9 amps approx.
3/4 hp Dual Cylinder 230V Kit including compressor, vibration feet and filter/muffler



1 HP - 7.6 CFM - MAX 25 PSI
COM407-CK
230v - 6.8 amps approx.
1 hp Dual Cylinder 230V Kit including compressor, vibration feet and filter/muffler








Built for continuous 24/7 operation and equipped with Vertex SafeStartTM technology allowing auto restart under maximum rated pressure without motor damage. Super-duty BrookwoodTM compressors incorporate upgraded rotors, stators, valve plates, bearings and capacitors and are thermally protected, oil-free, and require no lubrication; just periodic cleaning of included washable air filter. Extended duty cycle is approximately 2 to 3 years for compressor maintenance, about 2 to 3 times the duty cycle of ordinary piston and rotary vane compressors. All BrookwoodTM SafeStartTM compressors carry a 1-year warranty.
