Stratus® Gen 2 SRC Rocking Piston Air Compressors

Free Shipping in the USA

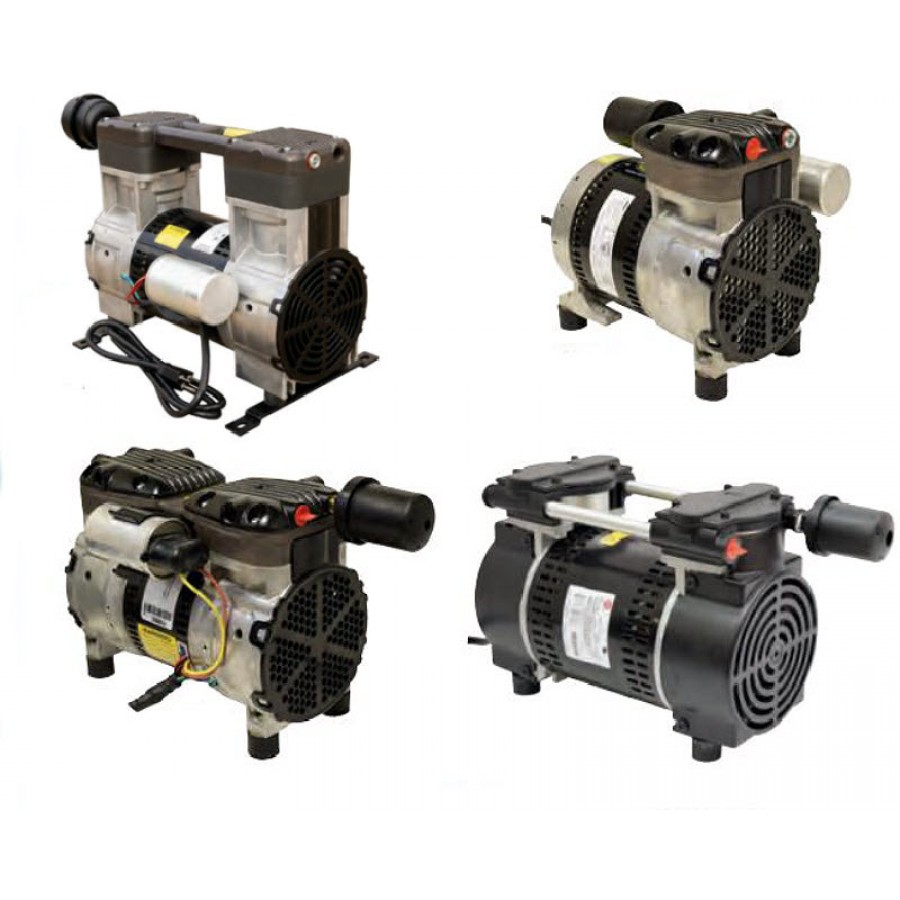

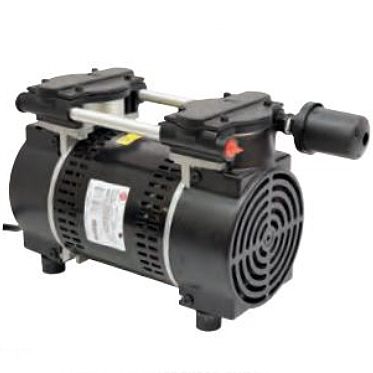

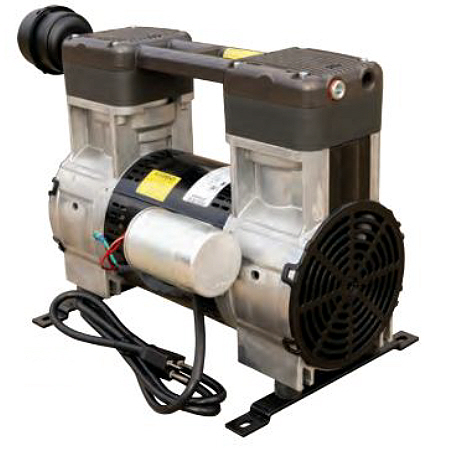

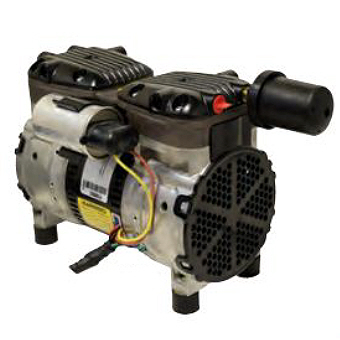

Stratus SRC series “Gen 2” rocking piston compressors are specifically designed for the demanding job of 24 hour operation. The oil-less design makes them ideal for pond aeration systems. Available in 1/4, 1/2, 3/4 and 2 hp models, the Stratus SRC series compressors are assembled in the USA.

Stratus™ line of rocking piston air compressors, each one designed specifically for the demanding job of 24 hour operation. They are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore mounted compressor sends air through tubing to a bottom mounted diffuser for a safe, effective way to aerate ponds.

Oil-less operation
Permanently lubricated bearings
Includes Stratus Smart-Start technology to start under load
Superior quality, flexible cup material for increased reliability
Die-cast body components for overall strength
Single or double cylinder design
Inlet/Outlet Size: 1/4 hp - 3/4 hp: 1/4" fpt
Inlet/Outlet Size:2 hp: 3/8" fpt
Maximum psi: 1/4 hp - 3/4 hp: max 30 psi
Maximum psi:2 hp: max 125 psi

4 Models Available
Units include: Air inlet filter, rubber feet, 5' power cord

All Stratus SRC compressors operate under 70dB. (About the volume of normal conversation) And they're even quieter when mounted in an optional cabinet. 2 Year Warranty. Rebuild kits and accessories available for all models.

1/4 HP - 2.3 CFM

SRC25
115v - 1.7 amps approx.
Including compressor, vibration feet and filter/muffler, 6' cord

SRC252
230v - 0.9 amps approx
Including compressor, vibration feet and filter/muffler, 6' cord

*Amps measured at 10' operating depth

1/2 HP - 4.5 CFM

SRC50
115v - 3.6 amps approx.
Including compressor, vibration feet and filter/muffler, 5' cord

SRC502
230v - 1.8 amps approx.
Including compressor, vibration feet and filter/muffler, 5' cord

*Amps measured at 10' operating depth

3/4 HP - 6.5 CFM

SRC75
115v - 4.5 amps approx.
Including compressor, vibration feet and filter/muffler, 5' cord

SRC752
230v - 2.3 amps approx.
Including compressor, vibration feet and filter/muffler, 5' cord

*Amps measured at 10' operating depth

2 HP - 12 CFM

SRC2002
230v - 4.5 amps approx.
Including compressor, vibration feet and filter/muffler, 5' cord

*Amps measured at 10' operating depth

Stratus Model	cfm Air Flow @ Water Depth of:
Stratus Model	0'	10'	20'	30'	40'	50'
1/4 HP	2.3	2.2	2.0	1.9	1.8	1.7
1/2 HP	4.5	4.3	4.2	4.0	3.8	3.6
3/4 HP	6.5	6.0	5.5	5.2	5.0	4.7
2 HP	12	11.7	11.4	11.2	10.8	10.5
