Solar Aerator Parts List

Building a solar aerator using cheap solar air pumps and direct current oilless compressors

Solar Energy Handbook
Available on Amazon.

This best-selling, internet linked book answers all these questions and shows you how to use the power of the sun to generate electricity yourself.

As an Amazon affiliate we may recieve payment for purchases made through Amazon.

Over the years we have tested and evaluated the staying power and effectiveness of many DC 12V and 24 Volt pumps and one thing we've constantly noticed is that no matter what type of pump you buy, these 12V pumps are not going to give you years of service so buy a good cheap one!

When I say cheap I don't mean some ebay special deal on a pump made in some far away country without care for product consistency I mean buy a good quality pond pump that doesn't cost too much because you will be buying replacements every 3 to 9 months of continuos usage.

If someone gives you a one year warranty then you might want to take a closer look because the pumps we use have a 3 month and 6 month warranty. That may not sound good...but that is the reality of solar dc systems as the current technology exists.

Up until now most DC air pumps and battery powered DC compressors had limited reliability. Most DC pumps we've seen offer a 3 to 6 month warranty and if you don't know exactly what you're doing as far as setting up your solar aeration system you can quickly burn out your motor.

We have finally found a commercial-grade line of pumps that come with a one-year warranty and these diaphragm, linear air compressors are easy to service and provide long lasting battery or DC current performance. These commercial-grade DC air compressors offer superb performance and durability.

It's not always possible to run some 14/3 gauge wire down from the nearest hydroelectric pole across a field into a valley and around a gully to reach a pond to power a pond aerator. A windmill is nice if you have wind but when that isn't the case the only option is to build a solar aerator. Often, as many of our friends know by looking on the Internet, a solar aeration system that has any sort of potential for long-lasting sustainabilty is going to cost upwards of $5000 and beyond. At that price I know a lot of pond owners who would rather blow bubbles into their pond through straws while canoeing to keep the fish alive and algae down.

Typical applications include live fish transport on trucks or fishing boats; however, they can also be used in emergency or solar-powered situations. The simple design of these DC air pumps makes them easy to maintain and repair (oilless, easily accessible brushes and diaphragm).

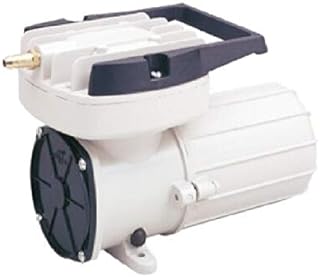

25 Watt & 80 Watt DC Air Pumps Price Includes USA Shipping These direct current air pumps both come with 12" pigtails for connection to your battery or solar electrical system. Also includes 6" of outlet hose (3/8" ID) and a plastic manifold. More info
80 Watt DC Air Compressor Price Includes USA Shipping These 12V workhorses have proven to be the most reliable pumps we've used. These high-flow, high-pressure compressors come with 9" pigtail wiring for quick connection to your your battery or current controller. Each one includes 2 feet of 3/8" ID outlet hose and an air inlet filter. They are oilless with ball bearing construction and low amperage draw. More info
Secure Shopping with Credit Card or Paypal® More products available at the Pond Report Store

Pigtail wires for connection to your battery or DC configuration included. 60 LPM and 100 LPM models include either plastic or steel housing cases and do not require additional housing for outdoor use. 30 LPM unit has no housing and must be enclosed for outdoor use but this 30 LPM unit includes a lighter adapter to fit into car lighter plugs as well as pigtail wires.

Running an air pump off a car battery is a much cheaper option and while I am not a solar aeration engineer I know that a cheap direct current air pump or diaphragm compressor can be bought for very cheap. Now I know that an expert in solar panels and off-the-grid engineering could explain what sort of linear current booster is needed to correctly match the starting amperage and running amps of the pump but I can't even come close to understanding let alone explaining.

I know one thing though. A Direct Current 12 Volt air pump or air compressor will run off of a battery; a deep cycle battery, car battery or boat battery but of what sort brand or amp hour rating I couldn't tell you. All I can do is review the solar air pumps we've used and heard about over the years and offer some good, cheap pumps for you all who know what sort of solar panel setup and current booster is required to make it work.

Other High Rated and Reviewed Solar & DC Air Pumps
Over the years we have tested and evaluated the staying power and effectiveness of many DC 12V and 24 Volt pumps and one thing we've constantly noticed is that no matter what type of pump you buy, these 12V pumps are not going to give you years of service so buy a good cheap one!

When I say cheap I don't mean some ebay special deal on a pump made in some far away country without care for product consistency I mean buy a good quality pond pump that doesn't cost too much because you will be buying replacements every 3 to 9 months of continuos usage. If someone gives you a one year warranty then you might want to take a closer look because the pumps we use have a 3 month and 6 month warranty. That may not sound good...but that is the reality of solar dc systems as the current technology exists.

Thomas Industries - Thomas DC Pumps Reviews
Thomas 5010 Air Pump - Thomas Diaphragm Pump 5002 VD BLDC - Thomas 5010 VD DC - Decent Pumps but higher than desired burnout rate and some issues in consistent pump construction. The 5010 series is in the range of 0.09 CFM @ 2.9 PSI which is barely enough to function a single small airstone and we found that parameter least pleasant. The Thomas 12 Volt 1/10hp Air Pump is similar; a good product.

Thomas 007 & 008 Series Air Pumps - Very good pressure delivering over 20 PSI and 0.6 CFM make this series decent but again the units we've seen featured in systems cooked too quick.

Thomas 907 and 2907 Series Air Compressors - These are good quality but high priced and again the inconsistency of the units makes us a bit nervous but the fact they can deliver 3.2 CFM and 14 PSI make this little grinders seem like a good deal if you can buy a few when they fry.

Solar Direct Drive 12 Volt DC Solar Aeration Systems

Solar powered aeration systems for remote ponds and lakes where power is not available, too expensive, or if you are off grid. Where a windmill isn't viable the solar direct systems, requiring no batteries, are also an environmentally conscious solution.

These plug and play solar systems come complete with high efficiency solar panels, energy efficient compressor, high volume cooling fans, fully adjustable manifold housed in weatherprrof ventilated cabinet. Diffusers are micro-bubble technology, self-cleaning, non-clogging membrane diffusers emit millions of tiny bubbles that increase dissolved oxygen levels while eliminating stratification, improving water quality and clarity. The systems are available as solar direct systems with 12 volt direct current pumps or as a hybrid solar/ac system that will operate with solar power when possible but will automatically switch to AC power when there is not enough sunlight to operate the DC pump.

Battery Free operation. We have eliminated the expense of rechargeable batteries and charge controllers by offering a direct drive (DD) aeration system. This reduces your cost along with the maintenance issues associated with a lot of extra components. Each system includes 2 panels with aluminum mounting brackets and adjustable pole bracket with variable angle configuration, compressor(s), an OWS DD solar controller module, heavy duty steel cabinet with locks, mounting pole, solar power disconnect switch, cooling fans, pressure gauge and a pressure relief valve. Each DD solar aerator can be operated by itself and totally independent of other aeration systems or it can be combined with a windmill aeration system to give you a longer operating time each day. It can also be combined with an electric aerator or windmill and electric aerator combo.

More Information

Solar Aerating Fountains for Large Ponds

The 1/2 HP and the 1 HP Aerify SW Solar Fountain are a high quality direct drive solar powered fountain designed for shallow or smaller ponds (up to 1 acre) where you need extra aeration while still getting the added visual benefits of a fountain.

All the solar fountain aerator components are commercial quality and made in the United States.

These tough and dependable solar aerators are couretesy of Outdoor Water Solutions who are among the industry leaders for solar aeration and solar fountains.

These solar aerators ave a 2 year warranty on the motor, fountain and controller and a 15 year warranty on the solar panels.

These solar aerators are direct drive, there are no batteries. The solar aerators will function as the sunlight hits the included solar panels.

Place the 6 solar panels in an area that captures the most sunlight to ensure your aerator operates as much as possible.

Direct drive solar systems do nbot use eavy expensive battery systems making them perfect for remote areas or when a minimum of maintenancer and concern is required.

Buying Solar Pumps & Aeration System Approximate Cost

Amazon's 12 V Air Pumps

DC 12V 160 LPM 5.5 CFM
120 Watts Air Pumps

See the full line of
Solar Air Pumps on Amazon

As an Amazon affiliate we may recieve payment for purchases made through Amazon.

64-watt solar panels at some solar stores can retail from $600 - $2000
We recommend the following for the best value in Cheap Solar Panels

Solar Panels on Amazon
As an Amazon affiliate we may recieve payment for purchases made through Amazon.

15 Watts Solar Panel:$129, 30 Watt Solar Panel:$260, 75 Watt Solar Panel:$350
For larger scale pumping, off-grid systems and cabin power systems we use the larger 165 watt solar panels: 165 WATT Mitsubishi Solar Panels

220-amp hour 6-volt battery $130 -$360 depending on quality
Air compressor $300 - $2500 depending on durability and included components
Control regulator and LVD $250 - $800 depending on quality and durability
1/2 inch air line (weighted) $120 - $250 depending on length and flexibility and memory of material
Air diffuser $65-$500 depends on size and water volume moved

Of course, the mountings for panels, enclosures for batteries and compressor can be purchased from your local dealer. The system can be permanently located at the site or mounted on a trailer for easy relocation if livestock or cattle or involved. While pond aeration systems are usually maintained on site the winter watering systems are known for being moved from pond to pond.

A linear current booster is required to combine the solar direct power from the panels to the DC powered pump and this is usually a simple system that can be picked up at a local supplier of parts designed for alternative power sources.

Your typical aerator includes a bubble diffuser which can be a EPDM type disc diffuser of nine or twelve in diameter membrane diffuser or an airstone or any manner of diffuser tubing also known as diffuser line, de-icing hose or bubbler line.

While many systems can include a length of airline, often 100 feet, there is the self sinking weighted tubing variety of airline that makes installation much easier. Standard airline will float and it is rare that one of my clients will decide to buy regular poly plastic tubing instead of the weighted tubing because it makes installation so much simpler.

Still, if saving money is a priority you should use floating airline available for about 30 cents per foot at the local hardware store instead of self-sinking tubing that costs from $1.15 TO $2.25 per foot.

For those of you who want to go beyond the solar direct system there exists many retailers who specialize in solar pond systems that include deep cell battery operated systems that can provide continuous aeration over 8 to 12 hours per day due to their deep cycle battery systems.

Fundamentally these solar pumps are the same but instead of operating only when sunlight hits the solar panels they have the ability to charge deep cell batteries during the sunny hours of the day and can operate the pump during times when there is no light which is often preferable as aeration systems an their best will function only during the evening hours when their is no chance for aquatic plants to contribute oxygen due to photosynthesis.

Pond Diffusers

Pond Compressors

Algae Control

Pond Bacteria

Aeration Systems

Parts would Include the following:

Kyocera KC85T 85W 12V Solar Panel with J-Box
Unirac 500024 Top of Pole 1 Module 22" Rail
1/2" Strain Relief with 1 Round Hole
Burndy Products TP10-10F 12-10 Fork Lug - Two Required
Square D QO24L70RB Square D QO Load Center
Square D QO110, 10 Amp, 1 Pole, Circuit Breaker
USE-2/RHW-2, 1 conductor 10awg per foot -20 feet included
Solar Converters Ppt 12/24-10A, 12/24V Lin Curr Booster
80W DC 12V Air Pump
50' Weighted Airline
6" Silicone Fine Bubble Diffuser
Tubing Clamps

AMAZON 12 VOLT AIR PUMPS
As an Amazon affiliate we may recieve payment for purchases made through Amazon.

**Note: You must accept that creating and building and setting up a solar aeration system is a very very VERY complicated affair and while we are offering the parts and instructions on how to build your system we cannot provide ANY help or installation guides.

If you wish to have a simple, turn-key system then please contact someone else as we are unable to privide any help beyond this list of products and parts. Any failure of the system to function as expressed, implied or as desired is not gauranteed.

Solar aeration systems are a very touchy and persnickety project so if you wish to buy or purchase from us then please do so at your own risk. We have provided a list of parts and instructions but do not imply or warranty that this will actually work!

Product Compare (0)

Solar Aeration Systems with Batteries for Large Pond & Lakes

After years of customer requests The Pond Report has brought Solar Aeriation into its product lineup! Solar powered aeration systems are the ideal choice for remote ponds and lakes where power is not available, too expensive, or simply if you are in a windless area and have lots of sun; it is als..

Starting at: $8,000.00

Add to Wish List

Add to Compare

TurboAir® Solar Powered Aerators

Free Shipping Within The USA These high-quality solar-direct systems are designed for ponds up to two acres in size. The DC air compressor can handle depths up to 35' and will provide quality aeration during daylight hours when the sun is shining. These systems have no batteries making them ..

Starting at: $5,750.00

Add to Wish List

Add to Compare

BriteStar® Solar Direct Aeration Systems

Free Shipping in the USA Solar direct aeration systems have no heavy batteries so are less complicated than battery systems and therefore less expensive. The solar direct systems will only operate when there is light or sun hitting the panels so operation during winter is reduced but for a g..

Starting at: $5,900.00

Add to Wish List

Add to Compare

NightAir™ Solar Aerator with Battery Backup

NightAir™ Battery Back Up Solar Aerators : This system has a larger, higher output compressor with over 600 watts of solar power and 400 Ah total on the batteries. More air, more solar power and more battery. Free Shipping Within The USA Revolutionary New Battery..

Starting at: $11,395.00

Add to Wish List

Add to Compare
