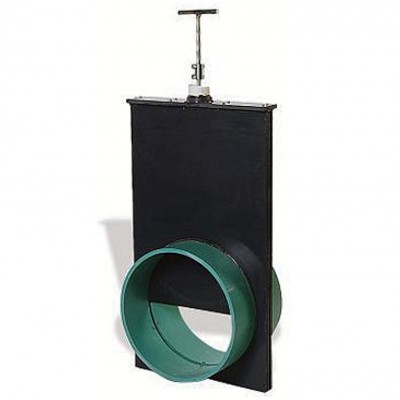

Heavy-Duty 15" & 18" Slide Gate Valves
Categories:
Commercial & Industrial Supplies -
-
Slide Gates & Water Control -
Water Level Control & Gates -
Product Code: Heavy Duty PVC Slide Gates
Availability: In Stock
Free shipping in the USA.
Product Code: Heavy Duty PVC Slide Gates
Availability: In Stock
Free shipping in the USA.
Price: $995.00
Free Shipping In the USA.
These reinforced valves allow you to shut off the flow of water in your tile line for effective water control and easy maintenance.
15" & 18" Heavy Duty Slide Gates Available
Smaller commercial duty slide gates in 6" to 12" are available here.
These reinforced valves allow you to shut off the flow of water in your tile line for effective water control and easy maintenance.
- Installation must provide a stable base for gate valves
- Installation using flexible couplers is highly recommended.
- All slide gates are Slip x Slip (S X S)
- Valve is not pressure rated.
- Valve is intended for gravity flow: Low pressure and some seepage may occur.
- This product is not for use in lagoons or non-gravity flow applications.
- All parts are made out of super tough high-density PVC and high-quality stainless steel for maximum durability and corrosion resistance.
- All PVC material is 1/2" thick
- Stubs are 4" long and SDR35 PVC Male
- 6"-long T-handle on 1/2" x 6 1/2" stainless steel rod. (Extension rods available)
- This product carries a 1-year warranty. Any modification to product will void the warranty.
Slide Gate Dimensions
| Dimensions & Hub Depths of Slide Gate Valves | ||||
| 15" Slide Gate | 18" Slide Gate | |||
| A | 3" x 18" | 3" x 21.375" | ||
| B | 17.75" x 32" | 21.125" x 38.75" | ||
| C | 18.75" x 16.5" | 19.875" x 22" | ||
| D | 4" | 4" | ||
| E | 0.625" | 0.625" | ||
| F | 19.25" | 22" | ||
| G | 16.75" | 20" | ||
| H |
Coupler 1.875" Long x 1" OD x 0.5" ID with 0.25" screw holes |
|||
| I | 2.75" PVC ring with 0.5" PVC pipe threads | |||
| J | 0.5" PVC male adapter | |||
| K | 2" PVC-DWV x 1.25" PVC-DWV | |||
Heavy Duty Slide Gate Material Specifications
Color: Black plate, pipe green
Hubs: SDR 35 PVC Male
Body: PVC 1/2" Thick
Shaft: 304 Stainless Steel
Paddle: 304 Stainless Steel
Handle: 304 Stainless Steel
Seals: Flexible rubber
Not pressure rated
Smaller commercial duty slide gates in 6" to 12" are available here.
