Slide Gate Valves
Categories:
Commercial & Industrial Supplies -
-
Slide Gates & Water Control -
Water Level Control & Gates -
Product Code: Commercial Slide Gates
Availability: In Stock
Free shipping in the USA.
Product Code: Commercial Slide Gates
Availability: In Stock
Free shipping in the USA.
Price: $495.00
Free Shipping in the USA.
These commercial PVC Gate Valves have stainless steel handle rods with optional extensions. These gate valves are an economical valve used for industrial, agricultural, and commercial markets.
6", 8", 10" & 12" Slide Gates Available
Heavy duty slide gates in 15" and 18" are available here.
6" Valve |
8" Valve |
10" Valve w/ SCH 40 Stubs |
10" Valve w/ SCH 40 Stubs |
These reinforced valves are well designed as a drain valve to tanks canals, ponds, and aquatic systems or whenever unrestricted flow, quick-opening, and trouble-free simplicity is required.
- Installation must provide a stable base for gate valves
- Installation using flexible couplers is highly recommended.
- Attaches to SCH40 PVC pipe.(using flexible couplers recommended)
- All slide gates are Slip x Slip (S X S)
- 100% water tested at the factory.
- Quick shut off in low pressure or vacuum lines.
Slide Gate Dimensions
| Dimensions & Hub Depths of Slide Gate Valves | ||||
| 6" Slide Gate | 8" Slide Gate | 10" Slide Gate | 12" Slide Gate | |
| A | 22.75" | 22.75" | 35" | 35" |
| B | 31.125" | 31.125" | 48.5" | 48.5" |
| C | 11.1" | 11.1" | 18.475" | 18.475" |
| D | 6.647" | 8.655" | 10.78" | 12.78" |
| E | 13.25" | 13.25" | 19.625" | 18.625" |
| F | 11.125" | 13.75" | 13.75" | 15.375" |
"B" dimensions is the height when the handle is fully open.
Optional extension handle will cause the "B" dimension to change according to the extension length.

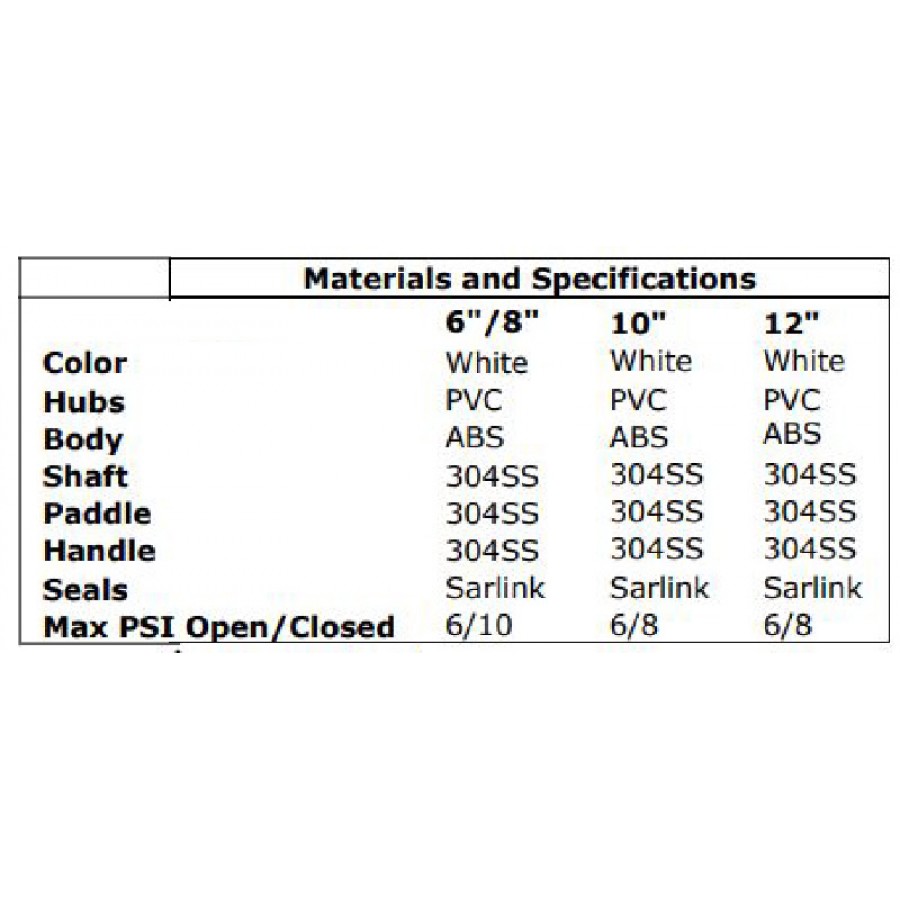

Slide Gate Material Specifications
Color: White
Hubs: PVC
Body: ABS
Shaft: 304 Stainless Steel
Paddle: 304 Stainless Steel
Handle: 304 Stainless Steel
Seals: Sarlink
Max PSI Open/Closed on 6" & 8" Gates: 6/10
Max PSI Open/Closed on 10" & 12" Gates: 6/8
Heavy duty slide gate valves are also available in 15" and 18" size.
